Fermenter & Bioreactor
BRAHMO TECHNOLOGIES PVT LTD offers laboratory, pilot-scale and industrial fermentation systems for controlled and scalable bioprocess applications.
Parallel Autoclavable Fermenter Block System
BRAHMO TECHNOLOGIES PVT LTD BioQuadX is a four-vessel autoclavable fermentation system designed for process development, strain screening, media optimization and high-throughput fermentation studies.
Each vessel provides independent control of agitation, aeration, temperature, pH and DO, enabling accurate and repeatable process development.
| Type | Autoclavable |
|---|---|
| Design Code | ASME BPE-2019 |
| Temperature | 0 to 130 °C |
| pH | 2 to 14 |
| DO₂ | 0–100% |
| MOC | Borosilicate Glass & SS 316L |
| Automation | Basic & Fully Automatic |
- Four independent fermentation vessels with servo-controlled agitation.
- Ring / microsparger with Rotameter and MFC gas control.
- pH, DO, temperature, redox and turbidity monitoring.
- Acid, base, antifoam and nutrient feeding ports.
- PLC, colour touch-screen HMI, USB and Ethernet connectivity.
- SCADA, agitation and aeration control.

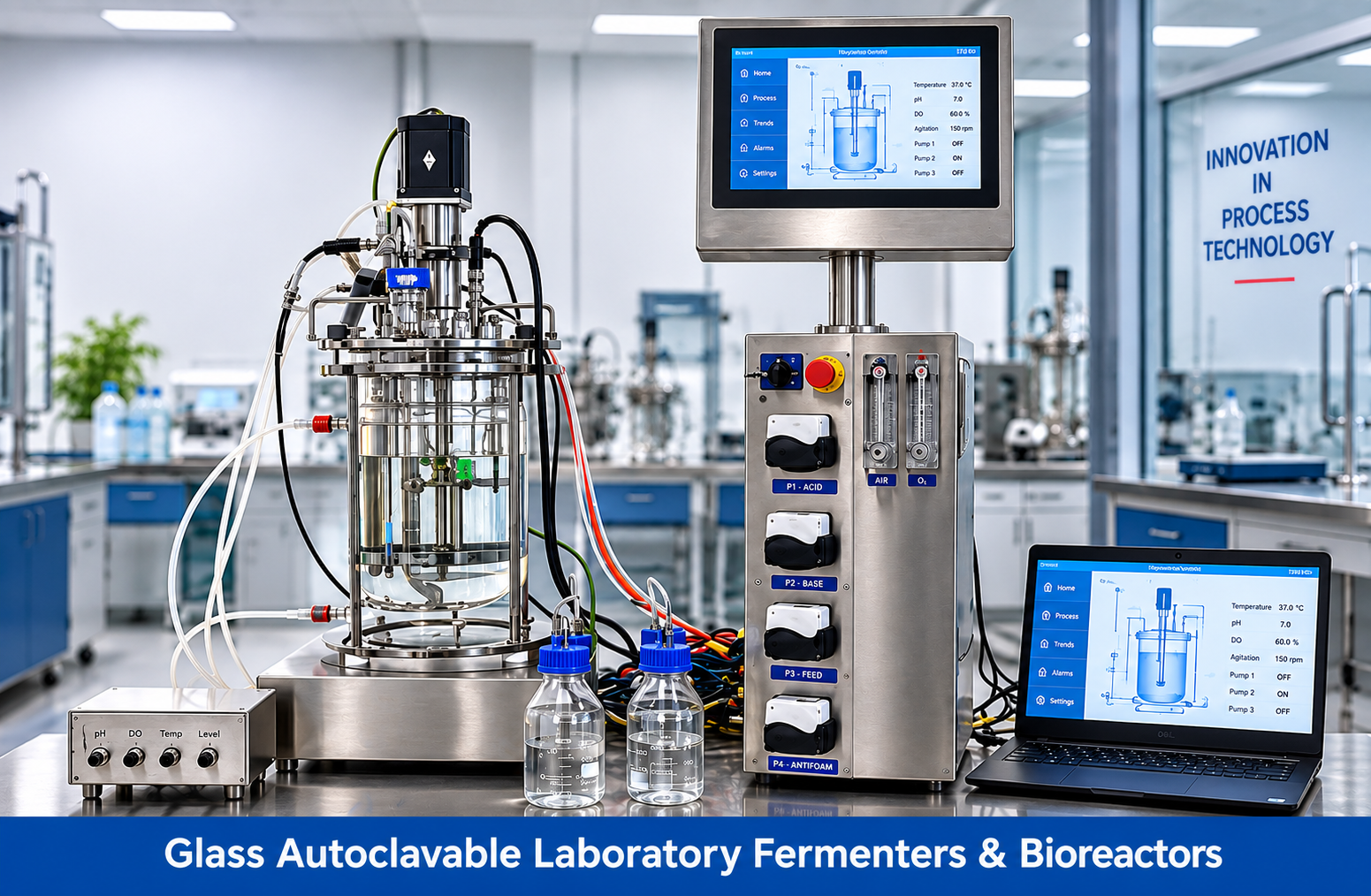

Glass Autoclavable Laboratory Fermenters & Bioreactors
BRAHMO TECHNOLOGIES PVT LTD laboratory fermenters are compact systems for microbial fermentation, yeast studies, cell culture and laboratory process development.
Borosilicate glass and SS316L construction, modular design and flexible automation provide reliable process monitoring and control.
| Type | Autoclavable |
|---|---|
| Capacity | 1L to 12L |
| Design Code | ASME BPE-2019 |
| Temperature | 0 to 140 °C |
| pH | 2 to 14 |
| DO₂ | 0–100% |
| MOC | Borosilicate Glass & SS 316L |
- Top-driven agitator with mechanical seal or magnetic drive.
- Automated aeration, temperature, pH, DO and foam control.
- Precise feed addition through peristaltic pumps.
- PLC control with colour touch-screen HMI.
- Mobile and web-based monitoring.
- SCADA data logging and SMS alerts.

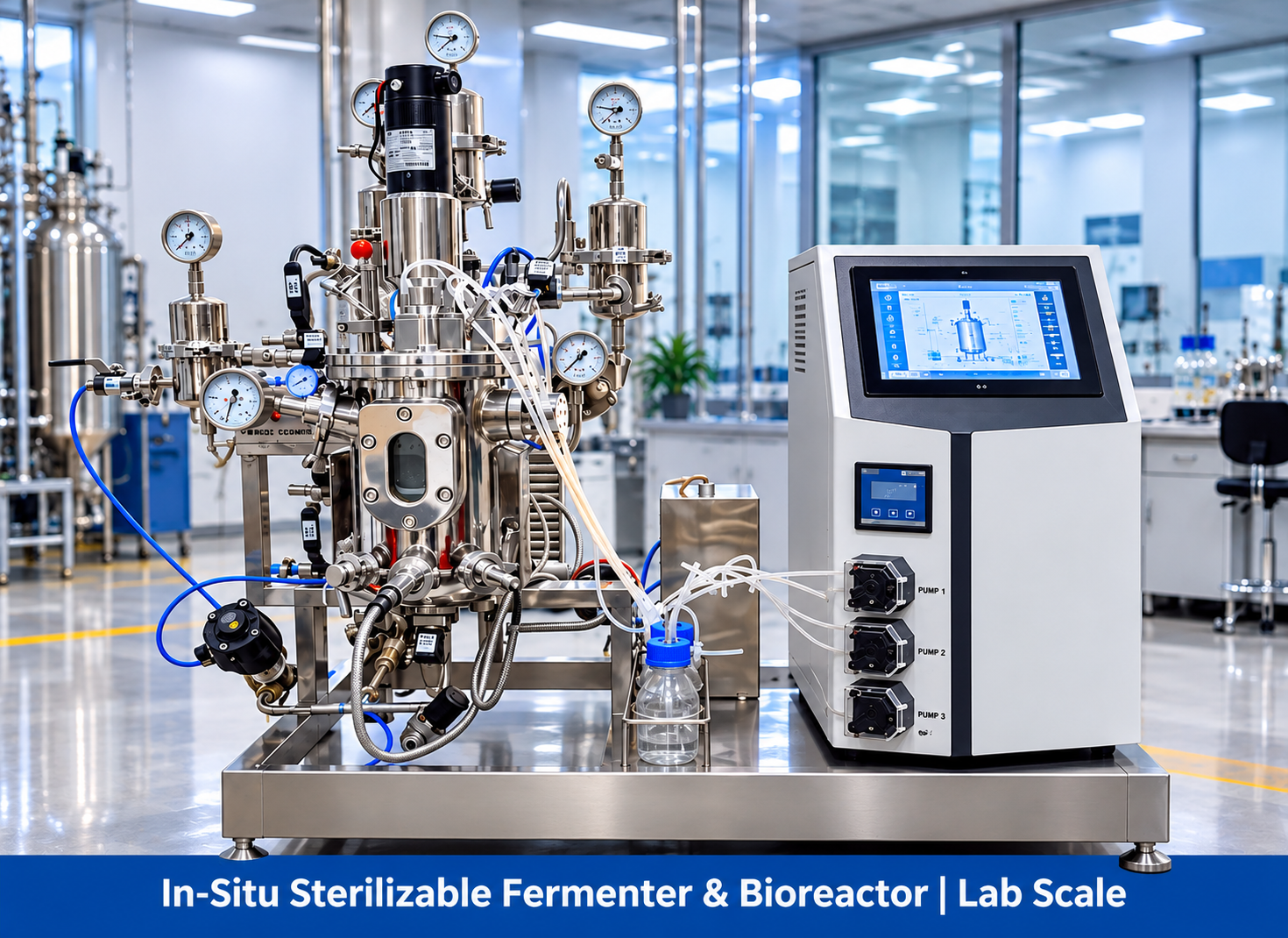

In-Situ Sterilizable Fermenter & Bioreactor | Lab Scale
BRAHMO TECHNOLOGIES PVT LTD BioFMX lab-scale fermenters are designed for controlled microbial, biotechnology and biopharmaceutical research.
The system provides in-situ sterilization, flexible automation and reliable process monitoring for laboratory-scale applications.
| Type | SIP & CIP |
|---|---|
| Capacity | 5L to 40L |
| Design Code | ASME BPE-2019 |
| Temperature | 0 to 150 °C |
| pH | 2 to 14 |
| DO₂ | 0–100% |
| MOC | SS 316L |
- Top or bottom-driven agitator with mechanical seal or magnetic drive.
- Automatic temperature, aeration, pH, DO, foam and pressure control.
- Precise nutrient and feed addition.
- Zero-dead-leg sampling and harvest valves.
- PLC-based HMI process monitoring.
- SCADA, mobile monitoring and SMS alerts.

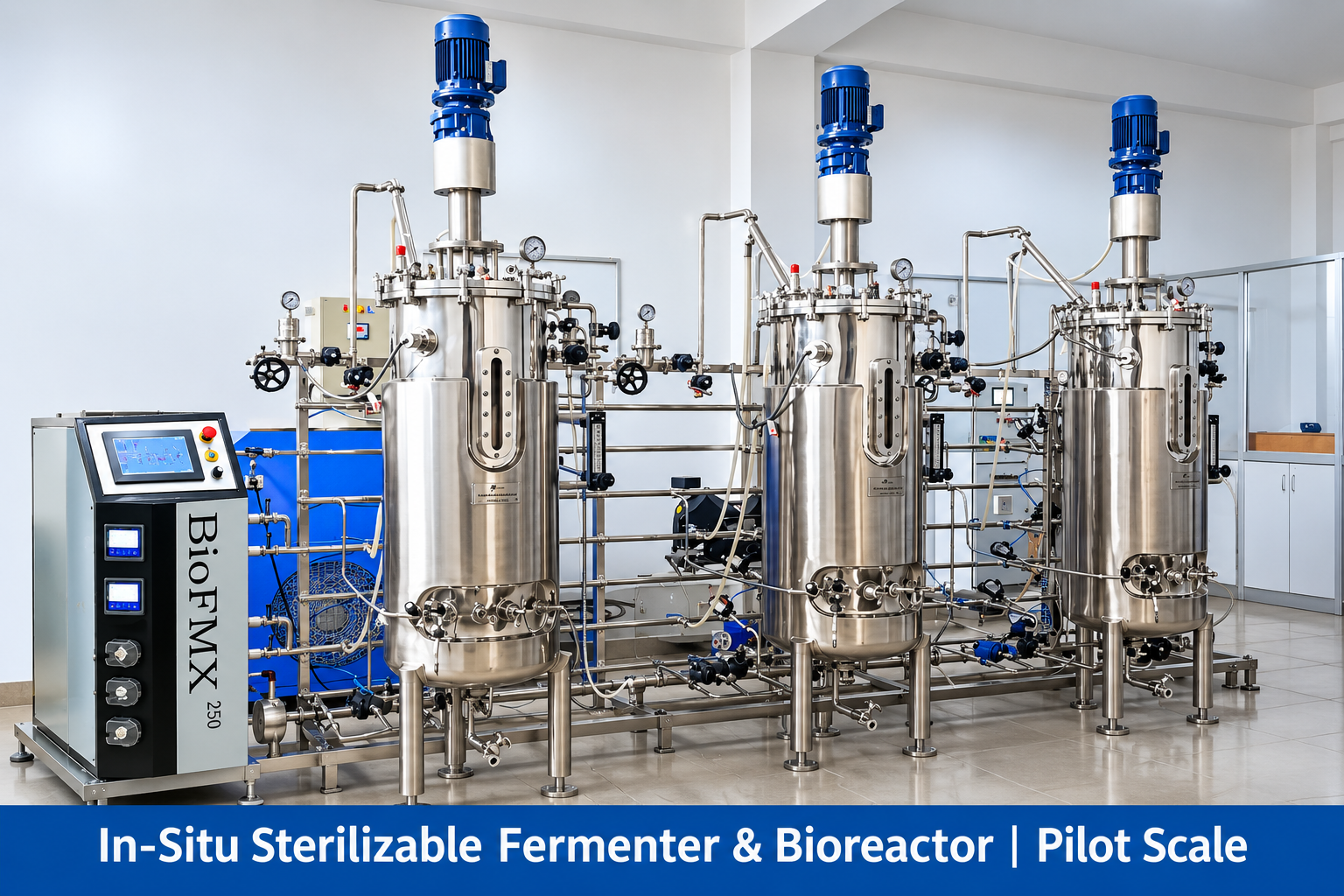

In-Situ Sterilizable Fermenter & Bioreactor | Pilot Scale
BRAHMO TECHNOLOGIES PVT LTD BioFMX pilot-scale fermenters are designed for process development, scale-up studies and controlled bioprocess applications.
Available in flexible configurations with automated process monitoring and control for reliable pilot-scale operation.
| Type | SIP & CIP |
|---|---|
| Capacity | 50L to 750L |
| Design Code | ASME BPE-2019 |
| Temperature | 0 to 150 °C |
| pH | 2 to 14 |
| MOC | SS 316L |
- Automatic temperature and aeration control.
- Automatic agitation and nutrient feeding.
- Automatic DO cascade control.
- Automatic pH and redox monitoring.
- Automatic OD / turbidity measurement.
- Vessel sterilization and back-pressure control.
- Batch recipe management.
- SCADA, mobile application and SMS alerts.

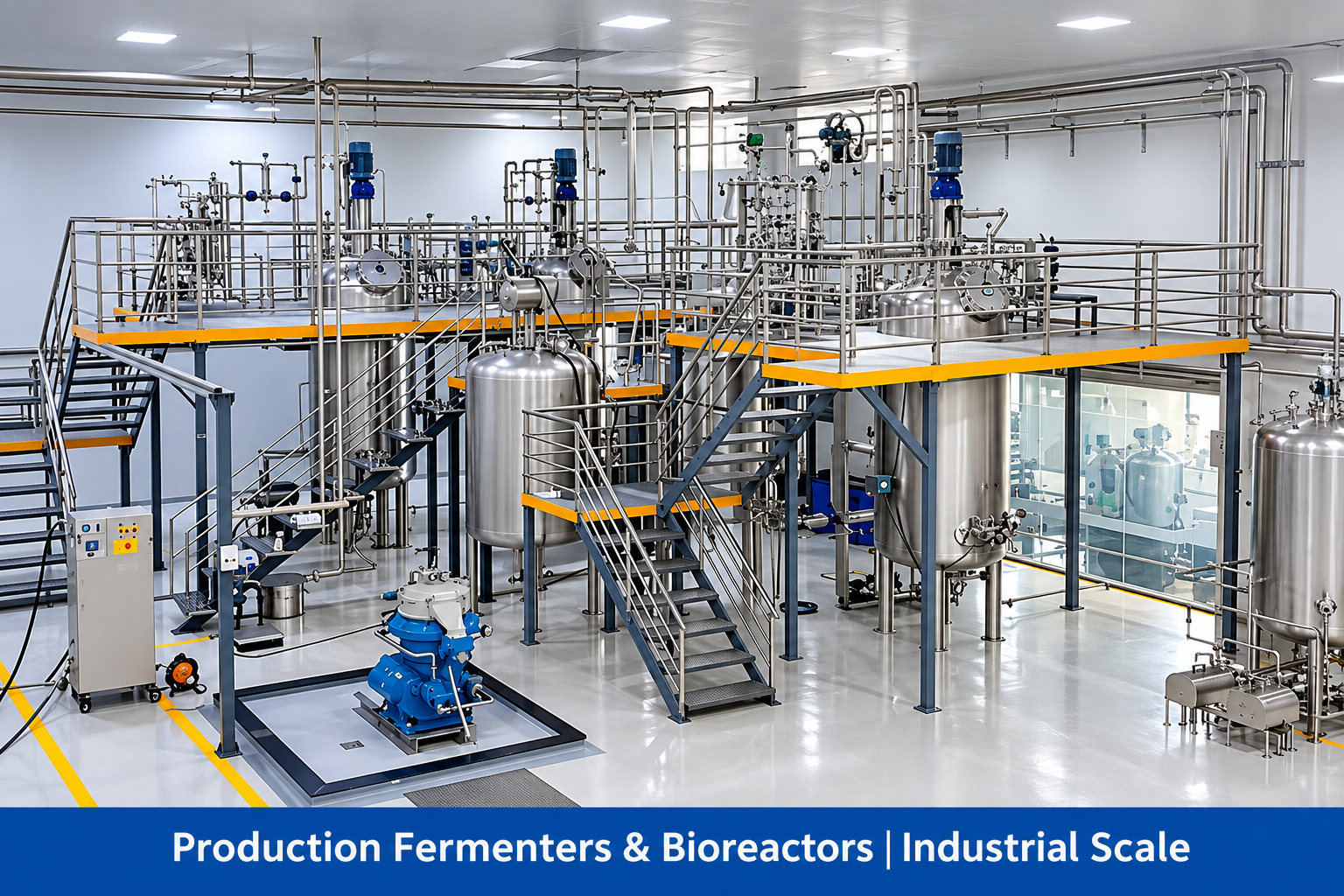

Production Fermenters & Bioreactors | Industrial Scale
BRAHMO TECHNOLOGIES PVT LTD industrial fermenters are designed for large-volume microbial, food, pharmaceutical and biotechnology production.
Robust stainless-steel construction, efficient agitation and advanced automation provide reliable and scalable production performance.
| Type | SIP & CIP |
|---|---|
| Capacity | 1000L to 50000L |
| Design Code | ASME BPE-2019 |
| Temperature | 0 to 150 °C |
| pH | 2 to 14 |
| DO₂ | 0–100% |
| MOC | SS 316L / SS304 & ASTM Grade |
- Automated temperature, aeration, pH, DO, foam and pressure control.
- Energy-efficient top-driven agitator with multiple impeller options.
- Precise feed addition and process control.
- Zero-dead-leg sampling and harvesting valves.
- PLC-based colour touch-screen HMI.
- Mobile and web-based monitoring.
- SCADA data logging and SMS alerts.
- SS316/316L wet parts and SS304 non-wet parts.
