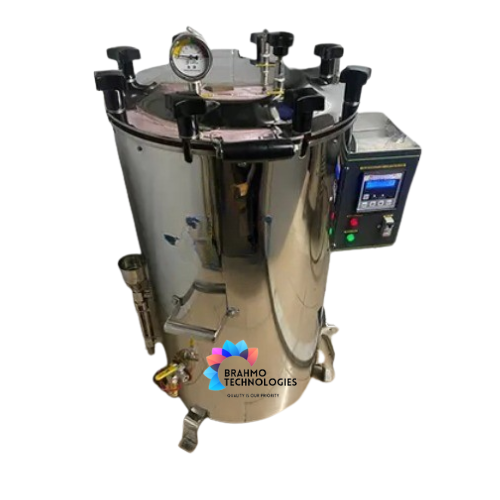

- Stainless steel interior
- Digital temperature indicator
- Digital temperature Controller
- ISI marked flange / immersion heating elements
- Up to 121°C temperature range
- Silicone rubber gasket
- Automatic pressure control switch
- Stainless steel basket
- Reliable steam pressure gauges
- Double or triple walled construction
- Pedal for lid opening
- Water level indicator
- Water inlet & outlet valves
TECHNICAL SPECIFICATIONS
| Construction |
Economy Model |
Double Walled Model |
Triple Walled Model |
| MOC Exterior |
Painted MS sheet |
SS 304 (mirror finish) |
SS 304 mirror finish) |
| No. of walls |
Two |
Two |
Three |
| Lid |
Polished MS |
SS 304 |
SS 304 |
| Interior |
SS 304 with silicon gasket |
| Working Pressure |
15 to 20 psi |
| Working Temperature |
121°C to 125°C |
| Controller |
Auto set to 15psi & 121°C |
| Pressure display |
Analog dial gauge |
| Timer |
Mechanical timer |
| Hydraulic tested |
Hydraulically Tested up to 40 psi (ASME Guideline) |
| Basket |
Stainless steel basket |
Stainless steel basket |
Not Required |
| Power supply |
220 Volts 50Hz |
| Standard Fittings |
- Low water indicator
- Automatic pressure switch
- Pedal lifting device
- Steam release valve
- Water outlet valve
- Spring loaded safety valve
- Power cable with three pin top
|
| Optional Accessories |
- Fully stainless steel construction (GMP)
- Up to 134°C temperature range
- PID temperature controller cum timer with alarm (buzzer)
- PLC with HMI interface with data logging
- 21 CFR Part 11 software
- Thermal Printer
- Lower water cut-off
|
STANDARD SIZES / DIMENSIONS
| Dia. x Height |
Volume |
Watt |
| 250 mm x 450 mm |
22 liters |
1 KW |
| 300 mm x 500 mm |
35 liters |
2 KW |
| 350 mm x 550 mm |
50 liters |
3 kw |
| 400 mm x 600 mm |
75 liters |
4 kw |
| 450 mm x 600 mm |
95 liters |
4 kw |
| 450 mm x 750 mm |
120 liters |
5 kw |
| 550 mm x 750 mm |
180 liters |
6 kw |
| 600 mm x 750 mm |
220 liters |
6 kw |
